亮杰有限公司 Liang-Jai Limited

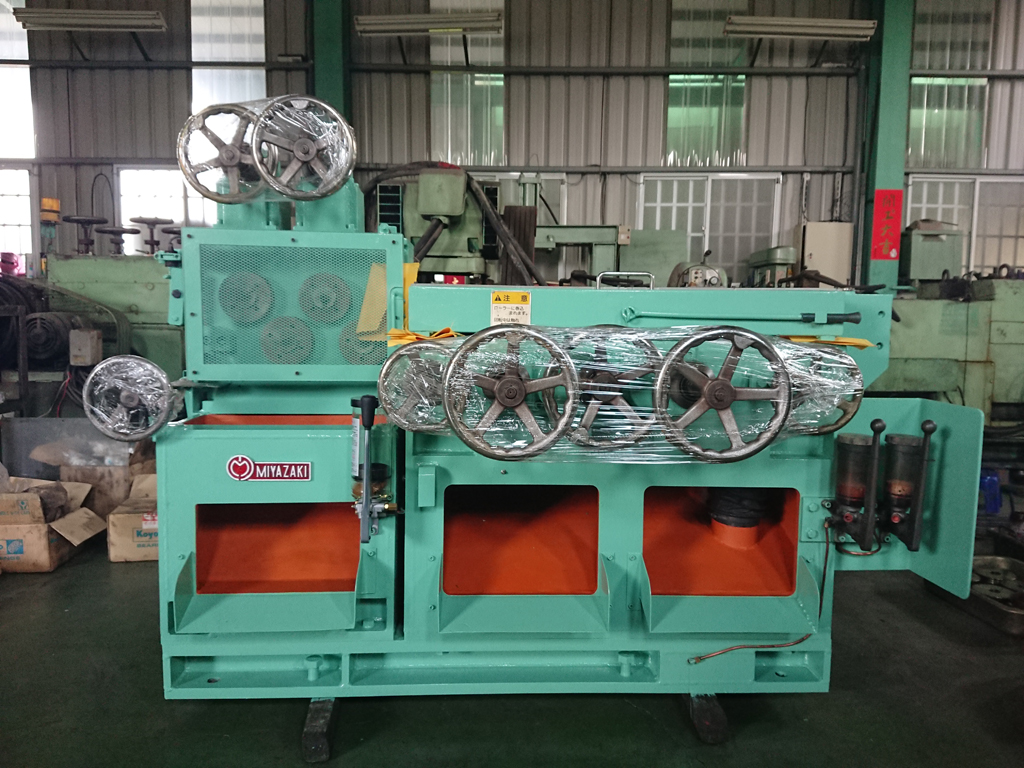

Machine Ref.：0200 COMBINED DRAWING MACHINE.

Manufacturer：MIYAZAKI MACHINERY SYSTEMS CO., LTD.

Model：DRSS – CAP – OB.

Max. Drawing Pull：2,000kgs.

Finish Size：

• Rounds 4-8mm
• Hexagons 4-8mm(AF)
• Squares 4-7mm(AF)

Cutting Length：1.5-4.0m

Max. Drawing Speed：80m/min

Motor Main Drive：A.C. 37KW

Motor Polisher：A.C. 15KW

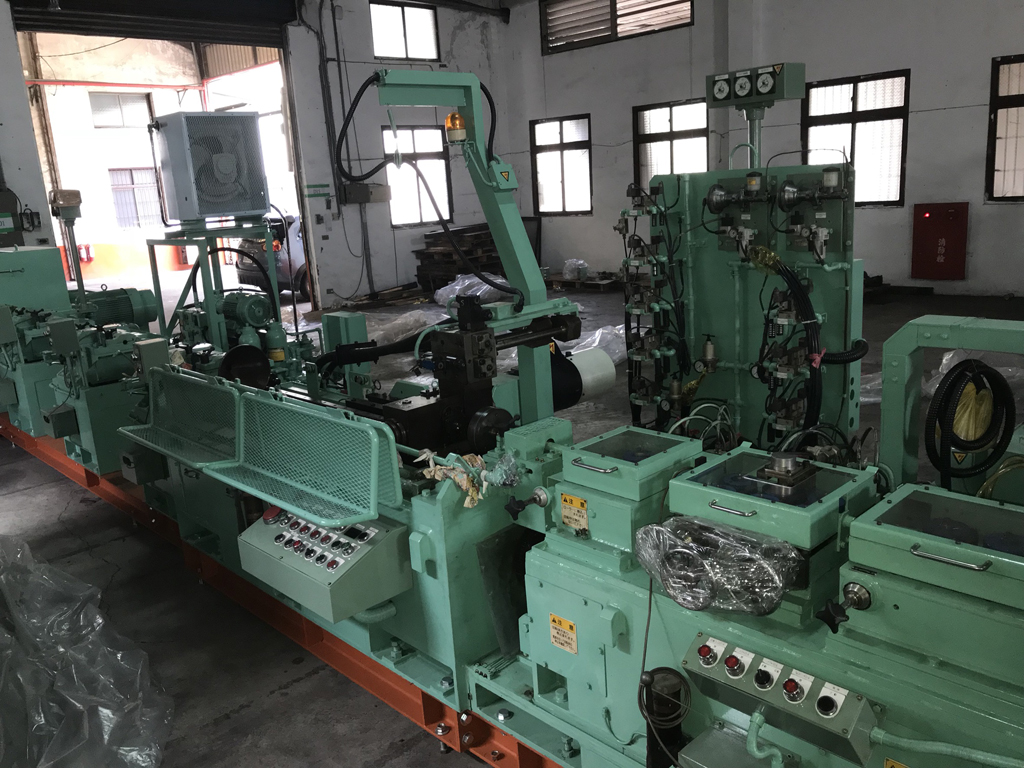

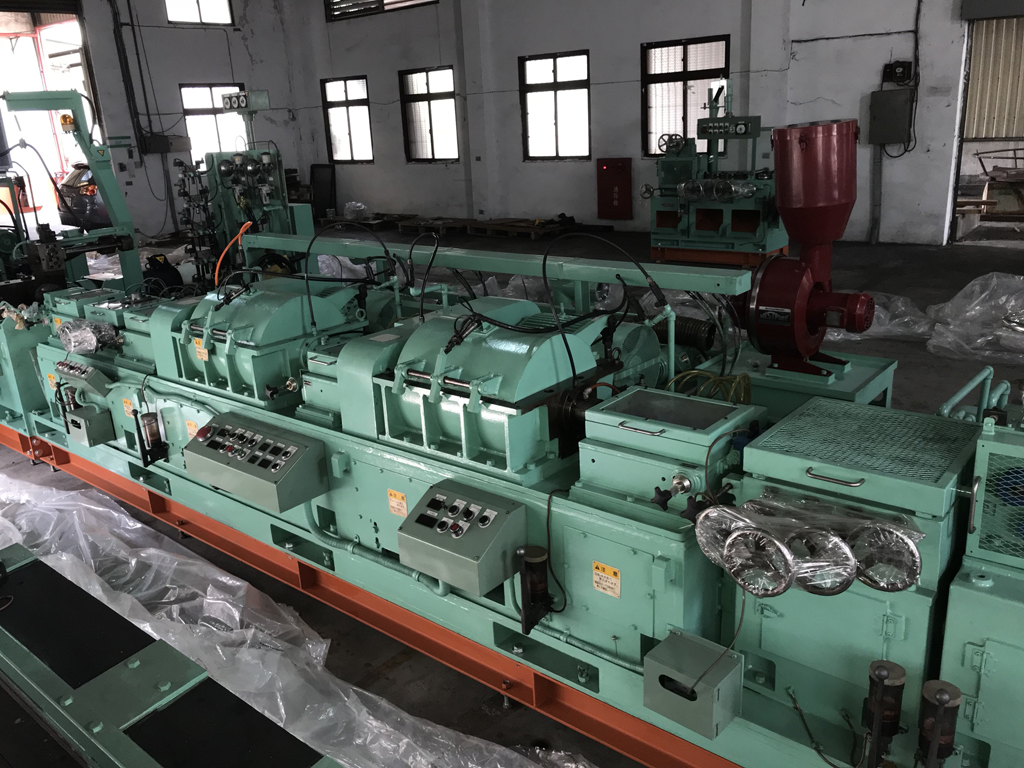

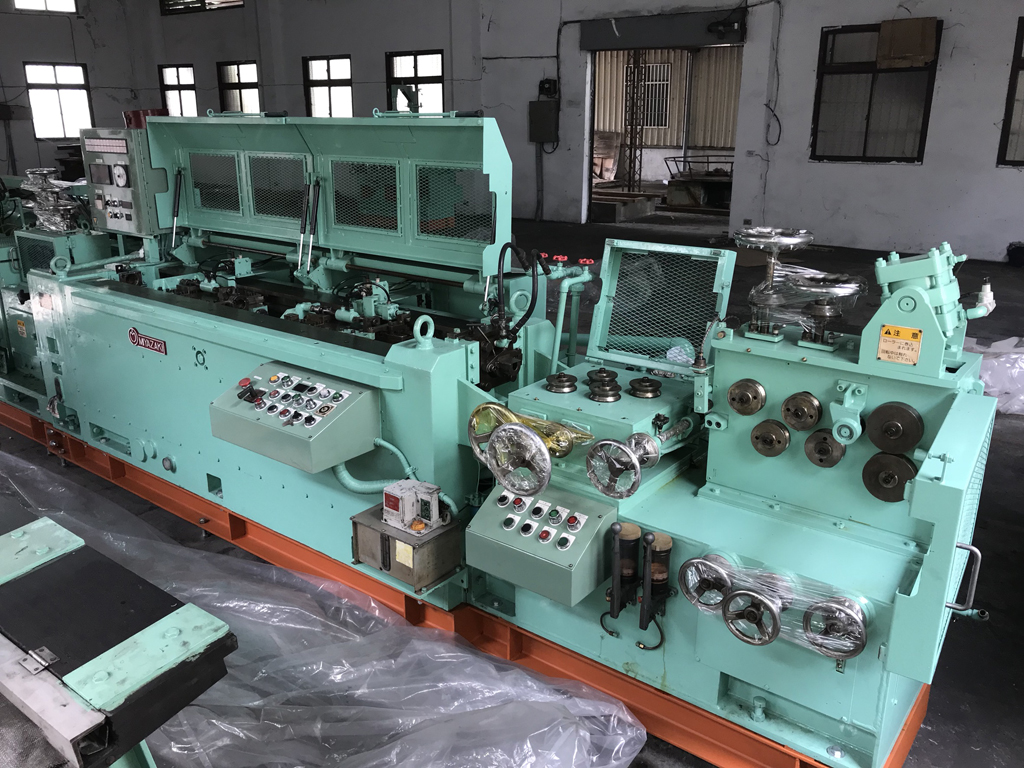

Composition Of The Line：

• H + V Pre-straightener
• Drawing Unit
• Straightening Unit
• Dual Spinner Straightening Unit
• Flying Shears
• 7 nozzles RIPO Polishing and Straightening Unit
• Bar Delivery Tables
